Reliability Assurance
| Stress | Additional Requirements | Reference |
Pre-conditioning | JEDEC MSL1/3 | J-STD020 |
Pressure Cook Test | 121 ℃,100%RH, 205 KPa | 96/168 hr |
Temperature Cycle Test | -55℃/-65℃~150℃, 2cycle/hr | 500/1000 cycle |

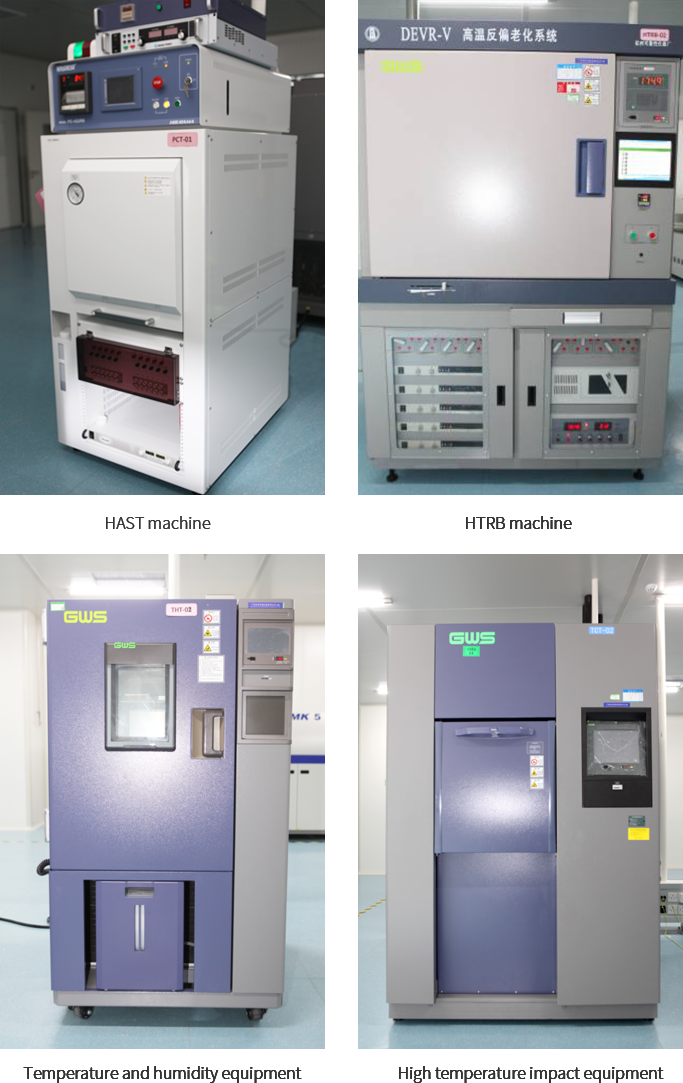

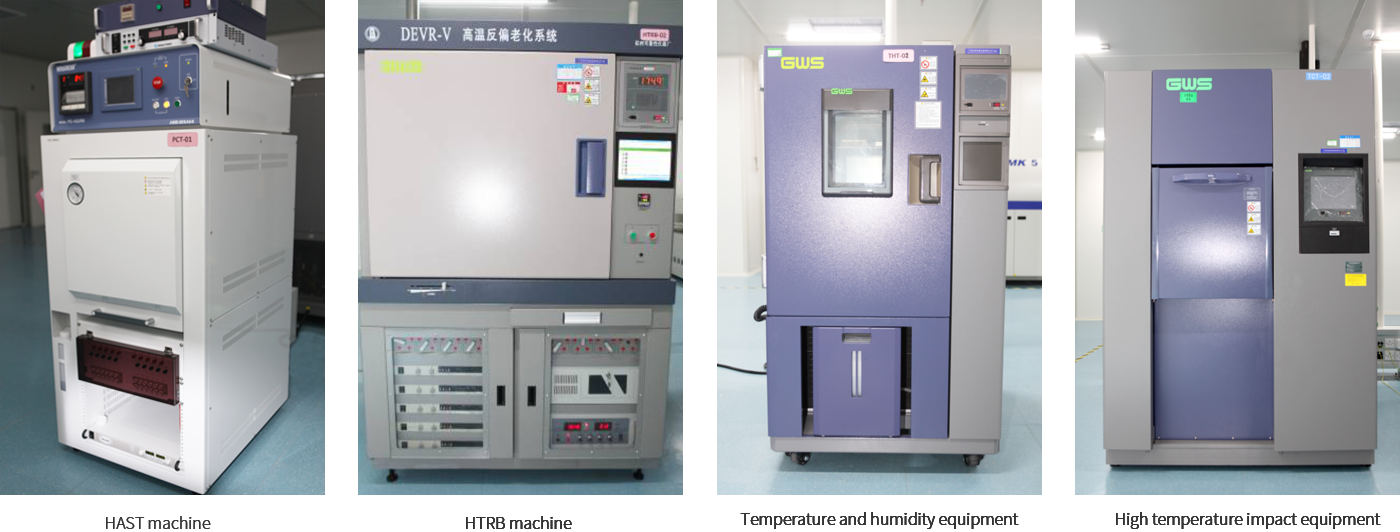

Highly Accelerated Stress Test | 135℃,85%RH,230Kpa | 96 hr |
High Temperature Reverse Bias | 150℃,80%/100% stress | 500/1000 hr |
High Temperature Gate Bias | 150℃,80%/100% stress | 500/1000hr |
Thermal/Humidity Test | 85℃,85%RH | 500/1000 hr |
| Intermittent Operational Life | △TJ≥100℃ | MIL-STD-750 |
