PD Power
Part
Vds Min (V)
ID@TC=25℃
RDS(on) Max 10V(mΩ)
RDS(on) Max 4.5V(mΩ)
PD@TC=25℃ (W)
Vgs(±V)
Vth (V)
Ciss Typ(pF)
Qg Typ(nC)
Configuration
Package
Application
同類型號
Status
HYG090N06LS1C2
60
60
9.2
14.1
62.5
20
1~3
926
18.5
Single - N
PDFN8L(5x6)
/ AC-DC synchronous?rectification / Power Supply
MP
產品特性：
The N-channel MOSFET in PDFN5*6 package features VDS?60 V and RDS(on)?7.7 Ohm, using the S...
HYG052N06LS1D
60
67
6.6
9.1
60
20
1~3
1638
28.7
Single - N
TO-252-2L
電池保護板 / AC-DC synchronous?rectification / Power Supply
MP
產品特性：
This product has been discontinued，Please choose HYG040N06LS1C2
HYG130N10LS1S
100
11.5
13.4
16
3
20
1~3
14
0.3
Single - N
SOP8L
BMS / AC-DC synchronous?rectification / Power Supply
MP
產品特性：
This is a 100V,11.2mΩ,SOP8L package product，using SGT structure technology, It is suitabl...
Part
Vds Min (V)
ID@TC=25℃
RDS(on) Max 10V(mΩ)
RDS(on) Max 4.5V(mΩ)
PD@TC=25℃ (W)
Vgs(±V)
Vth (V)
Ciss Typ(pF)
Qg Typ(nC)
Configuration
Package
Application
同類型號
Status

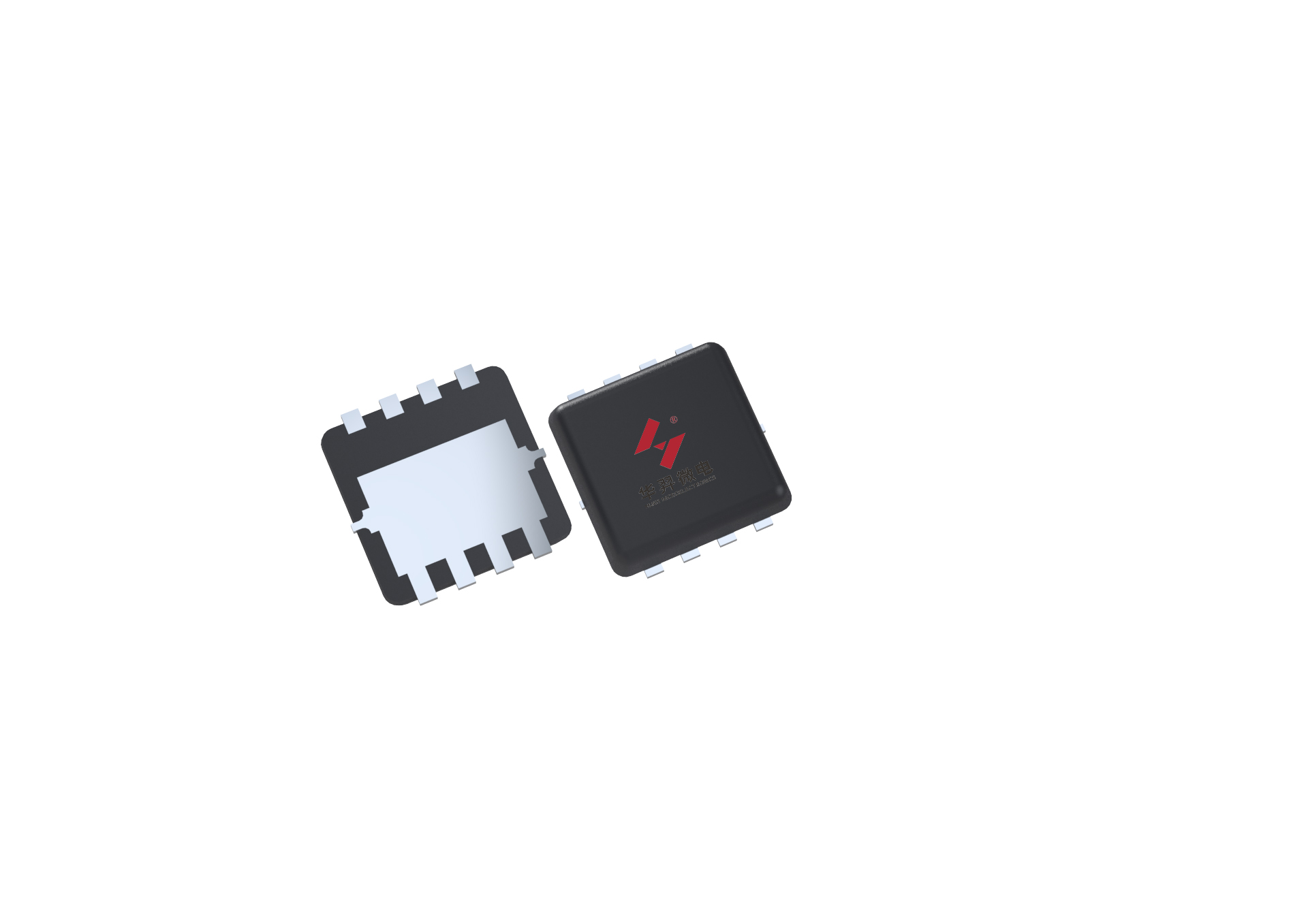

HYG090P03LA1C1
-30
-40
9.5
14
25
20
-1~-3
2992
60
Single - P
SOT23-3L
BMS / BMS / Load Switch
MP
產品特性：
This product has been discontinued，Please choose HYG090P03LR1C1
HY12P03S
-30
-12
13
16
3.1
20
-1~-3
2350
34
Single - P
SOP8L
BMS / / Load Switch
AO4435/AO4407
MP
產品特性：
The P-channel MOSFET in SOP8L package features VDS?-30 V and RDS(on)?10.8 Ohm, using the T...
HYG260P03LR1S
-30
-8
30
55
3
20
-1~-3
1210
18.5
Single - P
SOP8L
BMS / / Load Switch
MP
產品特性：
The P-channel MOSFET in SOP8L package features VDS?-30 V and RDS(on)?21.6 Ohm, using the T...
HYG035N02KA1C2
20
95
N/A
3.5
57.5
12
0.3~1.0
4082
47.5
Single - N
PDFN8L(5x6)
BMS / BMS
MP
產品特性：
This product has been discontinued，Please choose HYG023N02KR1C2
HYG032N02KQ1C2
25
100
N/A
3.2
62.5
12
0.4~1.2
4154
57.3
Single - N
PDFN8L(5x6)
BMS
HYG035N02KA1C2
MP
產品特性：
This product has been discontinued，Please choose HYG030N02KR1C2
HYG080ND03LA1S
30
11
12
15
2.5
20
1~3
680
14.6
Dual - N
SOP8L
BMS / BMS / Signal drive
MP
產品特性：
This product has been discontinued，Please choose HYG065ND03LR1S
